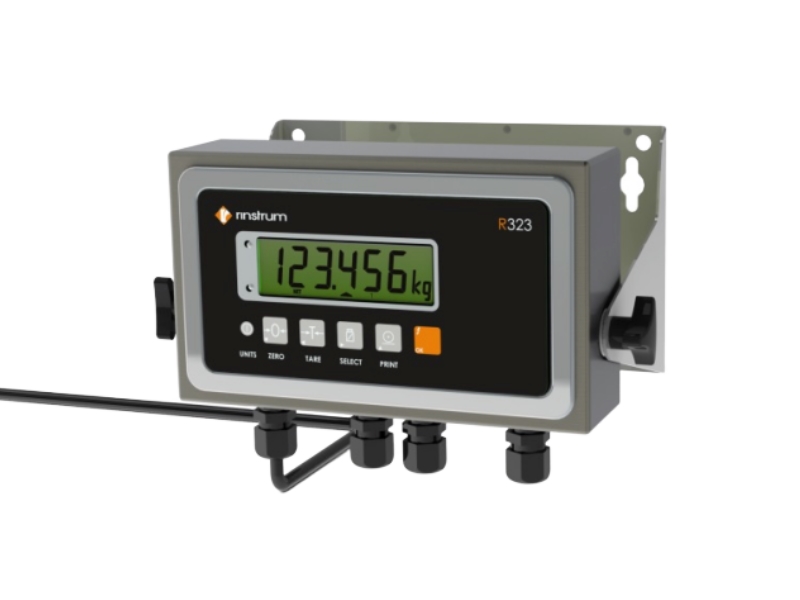

R323 Classic Stainless Steel Indicators

R323 Classic Stainless Steel Indicators

Key Highlights & Features

  • 20mm (0.8in) LCD display with LED backlight
  • AC, DC, Battery options
  • IP65 rated housing
  • rinLINK connector
  • Stainless Steel housing
  • Trade Approved Australia/Europe/USA


The R300 series of indicators builds on over 15 years of design experience to create a series of cost effective reliable products that are ideal for use in mobile applications such as forklifts, platforms, inside truck cabs, crane scales and OEM applications. As with all R300 Series units, the R323 classic stainless steel indicators include more memory allowing for the range of application firmware to be preloaded. The R323 classic is available in AC and battery versions.
  • Wide DC operation (7-24V) to suit a variety of onboard OEM applications. Eliminates the need for third party power supplies saving on system complexity and cost.
  • Long life rechargeable battery options ideal for mobile installations allowing for operator flexibility.
  • rinLINK magnetically coupled link on front fascia for easy access in situ for updates/setup of the indicator, saving the installer time and effort.
  • IP65 rated housings: Dust tight and protection against projected water, increasing reliability and indicator life time.
  • Trade approved in Australia, Europe and USA. Products are export ready with approved componentry.
The R323 supports a range of firmware options from basic weight display through to set points and custom printing. All the firmware is onboard, allowing for even easier upgrade in the field.

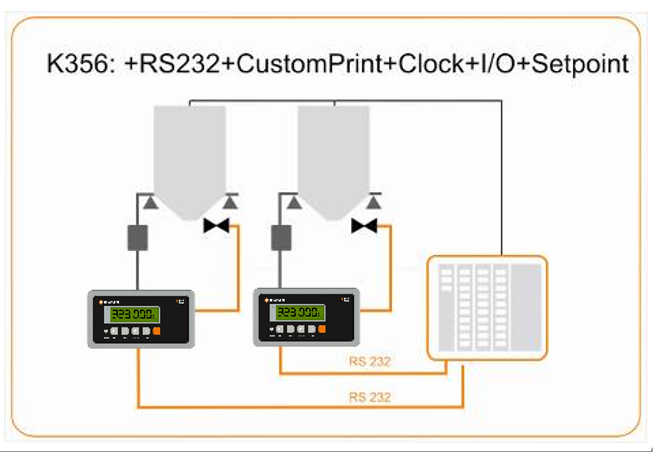

Name K342 K344 K346 K354 K356
Printing (Serial RS232) - Simple Simple Custom Custom
Function Key -Programmable HOLD HOLD HOLD 1 1
Counting - - - S S
Manual Hold S S S S S
Peak Hold - - - S S
Totalization - - - S S
Ring Network - S S S S
Bluetooth Accessory - A A A A
Input - 1 1 1 1
Clock Calendar - - - S S
Set Points Outputs - - 2 2 2
S - Standard
A - Accessory
