R420, R423 and R427 – K405 Firmware
INK405

R420, R423 and R427 – K405 Firmware

Key Highlights & Features

  • 250 Truck IDs (Products)
  • Alpha-numeric Truck ID names
  • Drive up to 16x350ohm load cells
  • Preset Tare and accumulation data on each Truck ID
  • Programmable printing
  • Simple two button operation
  • Single and two pass weighing

Description

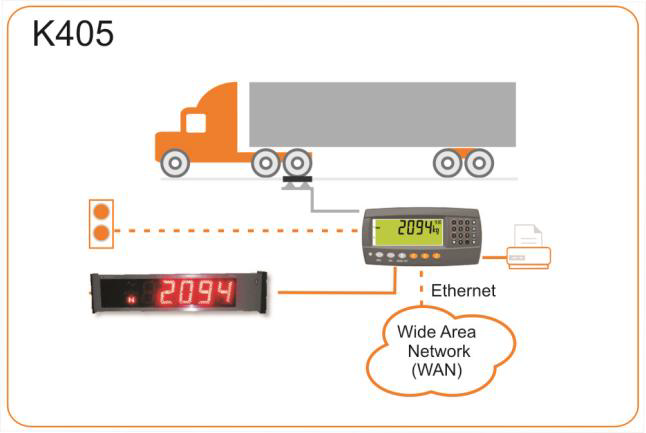

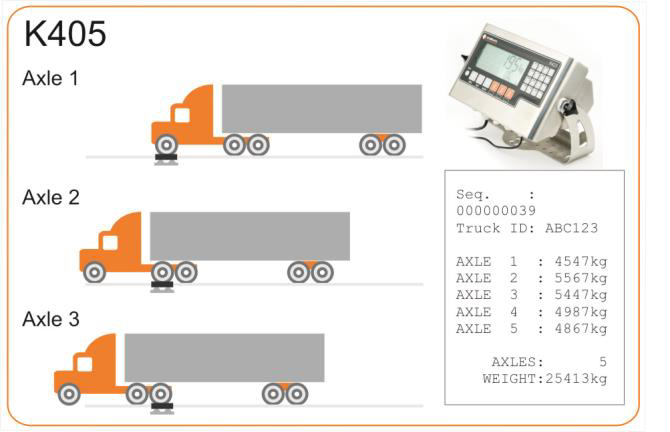

The K405 builds on the K404 standard truck weighing application to support static axle weighing rather than a full weigh bridge. There is automatic print on no motion for each axle.

Like the K404, the K405 allows for a range of operational scenarios all in one setup, from weigh-in/weigh-out to stored truck ids. The alpha-numeric keypad allows for easy entry of tare weight and Truck IDs. With 250 Truck IDs available it is suitable for applications with truck fleets of up to 250.

The following operational scenarios can all be handled on the one setup:
  • Weigh a truck in a single pass using its tare weight
  • Weigh a known truck with a stored Truck ID and preset tare and accumulate the statistics on that truck ID.
  • Two pass weighing with a weigh in followed by a weigh out. The ticket will show time/date weigh-in, weigh-out and net weights.
  • Automatic temporary Truck ID to simplify weigh-in/weigh-out for fast weighing throughput. The temporary Truck ID is removed once the weigh-out is complete.
R400 Indicators are ideal for weigh bridges:
  • Isolated communication modules for excellent protection against lightning
  • All accessory modules, including the power supply, can be swapped without recalibration.
  • Weigh a known truck with a stored Truck ID and preset tare and accumulate the statistics on that truck ID.
  • Indicator configuration and setup can be reused and easily uploaded using the opto-link on the front panel.
  • Pre-calibration using mV/V saving time on full calibration
