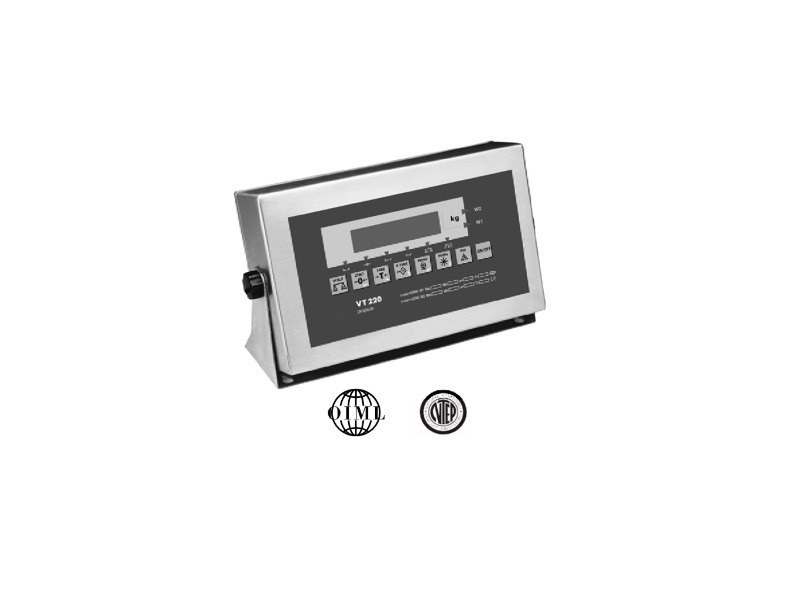

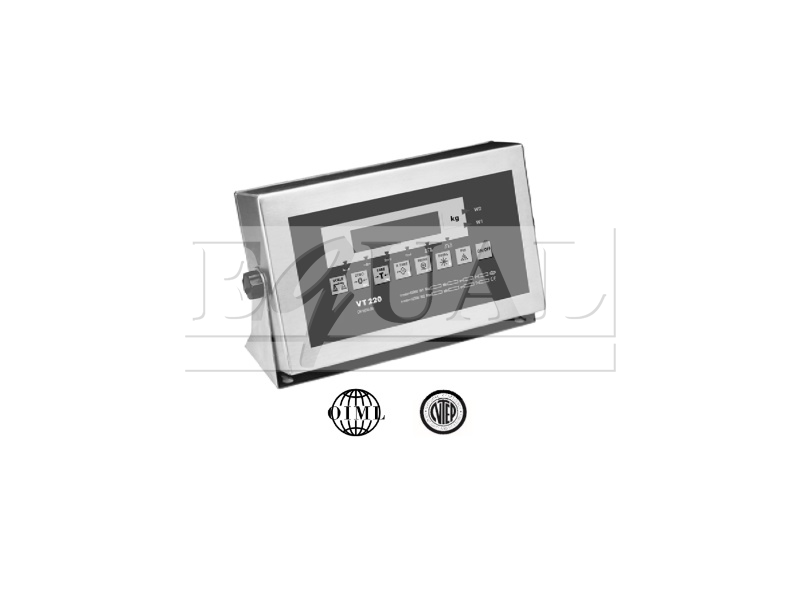

Model VT 200/220
INVT200/220

Model VT 200/220

Description



VT200/VT220 units are versatile, general-purpose weight indicators, with a wide range of industrial and commercial applications. The eight key panels enable easy operation, calibration, and setup of the instrument. An integral printer interface allows easy, programmable, ticket formatting. Automatic date and time storage with the real-time clock option clearly documents all printout records The VT220 with the LCD display includes an internal rechargeable battery option for stand-alone autonomous operation. Enclosure selections include tilted, wall mount, and desktop arrangements.

Features
  • Analog output (option)
  • Real-time clock (option)
  • Two optoisolated setpoints
  • Programmable ticket format

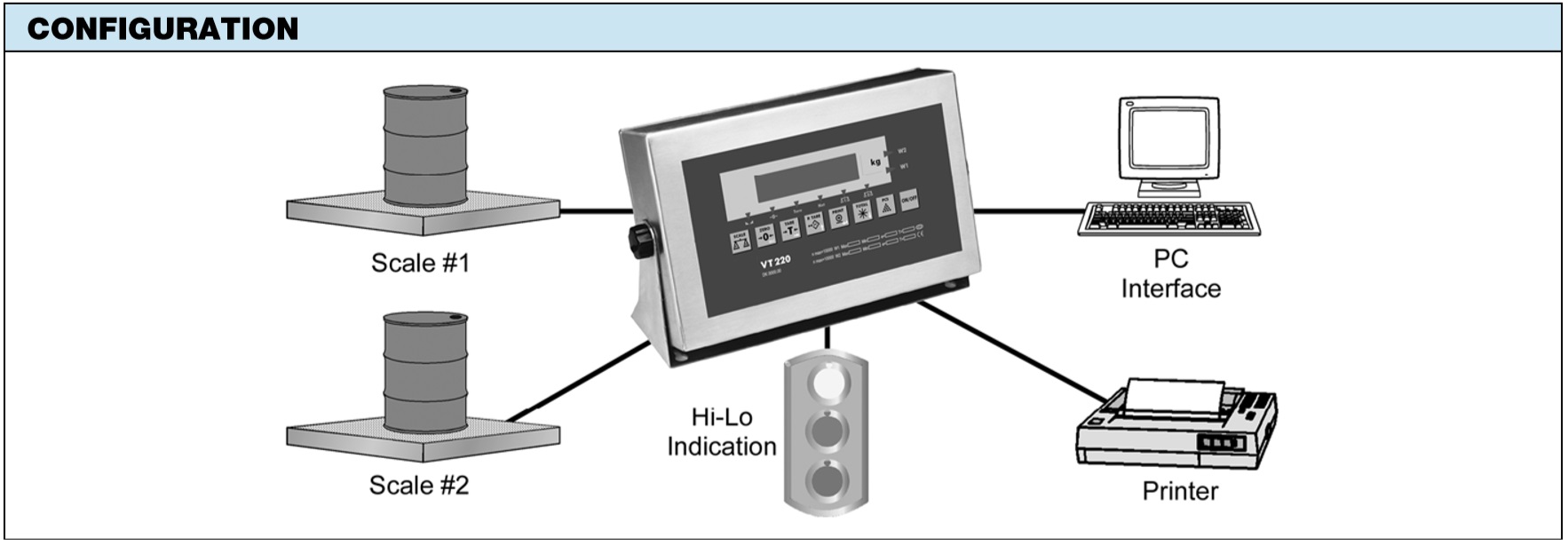

  • Dual scale operation (optional)
  • Built-in weighing and counting modes
  • OIML R-76 and NTEP approved to 10000d
  • Large 6 digit LED (VT200) or LCD (VT220) display
  • High sample rate - up to 70 conversions per second
  • Alibi (Flash) memory retains last 10,000 transactions
  • Battery operation (optional with aluminum enclosure)
  • Two serial ports for printing and networking (one standard)
  • Stainless steel enclosure (IP65), aluminum enclosure (option)
  •
    Applications
  • Counting scales
  • Inventory control
  • Bench and floor scales
  • Various industrial weighing systems
  •
    Options
  • RS-485 port
  • Analog input
  • Analog output
  • Real-time clock
  • LED/LCD display
  • Second RS-232 port
  • Aluminum enclosure
  • Stainless steel enclosure
  • UL/TUV/UK power adapter
  • Battery (for aluminum only)
  •

    Specifications
    Performances
    Resolution: Selectable up to 990000 dd.
    Conversion Speed: 3 - 70 samples per second (selectable).
    Sensitivity: 0.4µV/Vsi for approved scales, 0.1µV/Vsi for non-approved scales.
    Full Scale Range: -0.25 to 1.75mV/V [-1.25mV to 8.75mV] or -0.25 to 3.75mV/V [-1.25mV to 18.75mV].
    Linearity: 0.002% of full scale.
    Long Term Stability: 0.005% of full scale per year.
    Excitation: +5V alternating polarity or +5VDC (selectable), with sense (6 wires).
    Number of Cells: Up to 10, 350-ohm load cells
    Filter: FIR automatically adjusted to conversion speed, Rolling average.
    Offset Drift: ≤2ppm/°C.
    Span Drift: ≤2ppm/°C.
    A/D Converter Type: Sigma-Delta, ratiometric.
    Count By: x1, x2, x5, x10, x50.
    Decimal Point: Between any digits of the weight display.
    Calibration Methods: Dead load and span, or data sheets calibration, via the mV/V output values of the load cell. Calibration of two analog inputs (optional) with individual coefficients.
    Weighing Functions: Automatic zero trackings, motion detection, auto-zero on power-up, zero tares, preset tare, net mode, multiple test functions.
    Memory Allocation: Calibration data EEPROM, Flash tally-roll (Alibi) memory capable of 10,000 weight registrations.

    Environmental
    Operating Temp: -10°C to +40°C [14°F to 104°F]
    Storage Temp: -10°C to +70°C [-4°F to 158°F]
    Relative Humidity: 40-90% RH, non-condensing

    Display and Keyboard
    Display:  6 digit, 7 segments, LED or LCD
    Digit Height: 20mm (VT200), 16mm (VT220)
    Status Enunciators: No motion, zero, tare in use, net, scale in operation (#1 or #2 or sum #1+2, if the second scale connected), piece counting mode
    Weight Digits: 4, 5 or 6 (setup selectable)
    Keyboard:  8 key membrane keyboard, with tactile feedback

    Electrical
    Voltage:  85 - 265VAC
    Current: 500mA
    Battery Operation (Options): Internal rechargeable battery (VT220) Aluminum version only

    Isolated Analog Output (Optional)
    Resolution: 16 bit DAC
    Voltage Output: 0.02-10V
    Current: 0-20mA or 4-20mA
    Linearity: 0.002% of full scale
    Offset Drift: ≤2ppm/°C

    Input & Output
    (x1) Logic Input: 9-24VDC, negative common, opto-isolated to 2.5KV
    (x2) Logic Output: 24Vdc±10%, positive common, max current 100mA, opto-isolated to 2.5KV

    Enclosure
    Stainless Steel Enclosure
    Dimensions: 252x152x62mm LxHxD
    [10x6x2.5in. LxHxD]
    Mounting: Wall and tilt mount
    Protection: IP65
    Wiring Connections: Cable glands
    Aluminum Enclosure
    Dimensions: 194x100x107mm LxHxD
    [7.64x3.94x4.21in. LxHxD]
    Mounting: Desktop
    Protection: IP40
    Wiring Connections: D-sub connectors

    Approvals (Accuracy Class III / IIIL)
    OIML R-76: 10000d single or dual interval
    EU-type approval no. DK0199.62
    NTEP: 10000d single or dual interval
    NTEP CC#..................................
