R400 Series Build to Order Console
SCR400

R400 Series Build to Order Console

Key Highlights & Features

  • 100,000 d @ 0.25 V/d
  • Completed cabling within the unit.
  • FELS operations via DX40 software in optional D640/D740 remote displays.
  • Internal Logic relays in 400 Series allow for additional I/O control beyond the standard weight triggered I/O.
  • Powder Coated or stainless steel options.
  • Save400 software for cloning applications.
  • Viewer Software for configuration and diagnostics.

Description

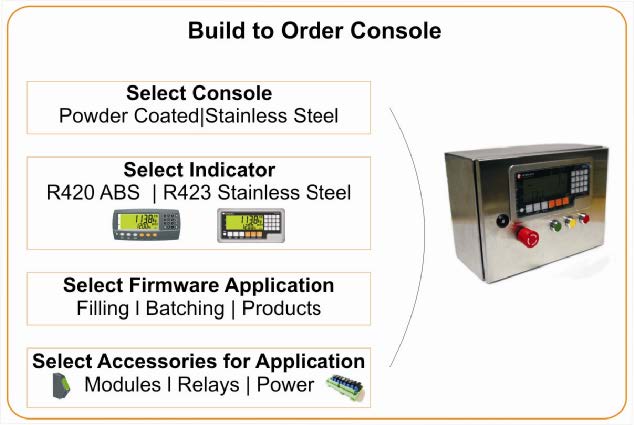

The R400 series of indicators are ideal for mounting in consoles for a wide variety of applications including filling, batching and process control just to name a few. The console houses the power supply and relays that are used to control external devises; motors, solenoids etc. The R400 series modularity makes it ideally suited for build to order applications where the modules and accessories can be easily specified to be incorporated in one unit to suit your applications.

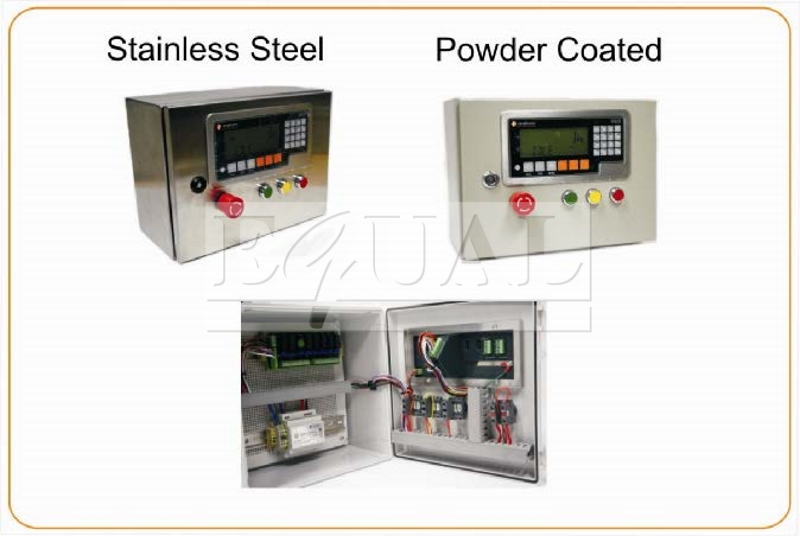

Two consoles are available - stainless steel or powder coated - selected according to the environment. The R420 (ABS) rated to IP65 or the R423 (stainless steel) rated to IP66.
A typical configuration would include:
  • DIN rail mounted relays that are used in conjunction with an I/O module and provide 8 voltage free relay outputs rated to 250VAC up to 8A.
  • DIN rail mounted 240VAC Power Supply
  • Emergency Stop and coloured buttons configured as required
  • Cabled and with a basic configuration for the application firmware that has been selected.
Flexibility is the key with its award winning modular accessory design and the ability to utilise the ever increasing Software Variants of the 400 Series of Indicators.
Modules include: Additional RS232/RS485 Serial options, Input/Outputs, Analogue outputs, voltage free inputs for buttons etc. Ethernet, Alibi (Data Storage Device) as well as battery or AC options.
Operator friendly - large multi-segment display that uses logical prompts along with dedicated and programmable function keys.
Printing can be tailored with custom record, docket or reports printouts. Primary display is 29mm (1.1”) and secondary display 18mm.
