IP69K Marine Grade Stainless Steel Scale
SCIP69K

IP69K Marine Grade Stainless Steel Scale

Key Highlights & Features

  • Check weighing
  • Heavy washdown applications
  • Marine environment
  • Marine grade (316) stainless steel throughout
  • Trade approved NMI 6/4C/256
  • X320 IP68 and IP69K indicator
  • X320 IP68 and IP69K indicator

Description

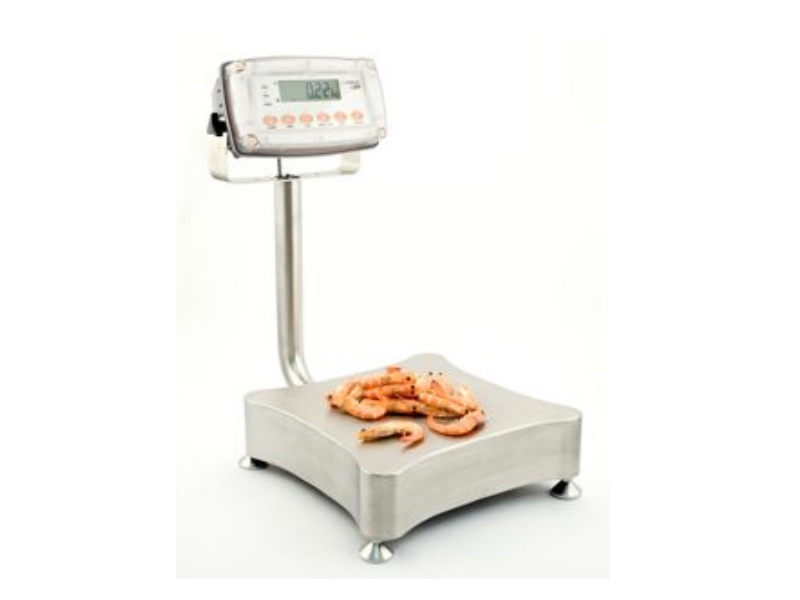

The XK combines the proven robust X320 indicator with a rugged X Series base equipped with an IP69K load cell to handle the toughest weighing application. An ideal general purpose or check weighing scale for marine and food processing applications and for:
  • Tough environments where there is possibility of knocks
  • Where heavy wash down of the indicator and base is needed (IP69K).
  • Where the whole scale including the indicator needs to be submerged for hygienic purposes for example (IP68).
  • Check weighing and general purpose weighing

Tough enclosure Impact resistant composite alloy indicator housing designed to withstand knocks
Capacitive keys No moving parts, no membrane to leak or damage
Clear highly visible display 20mm LCD display with LED backlight
Built-in check weigh function 3 coloured high intensity status LEDs
Three outputs - Over, Under, Pass High side drivers up to 400mA, to drive a traffic light pole for example

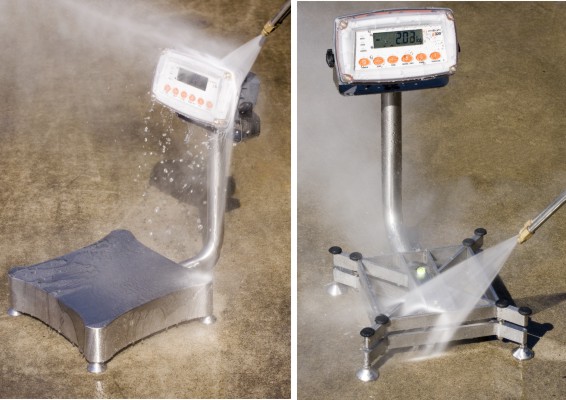

IP69K Rated IP69K environmental rated means:
  • high pressure water jets (1450psi)
  • high temperature (up to 80oC)
  • from multiple angles.

Standard X Scale Series features:
Built-in RS232 Connection to printer, PC or display
Configurable printing Link to a printer for customised reports, printouts and dockets.
Built in clock calendar For date and time stamping
Three power options AC, DC and rechargeable NiMH battery options
Dedicated function keys Zero, Tare, Gross/Net

  Pan Size -A Dual Range Capacity
Capacity (kg) 310 x 310mm Range 1 Range 2
15 ● 6 x 0.002 kg 15 x 0.005 kg
30 ● 15 x 0.005 kg 30 x 0.01 kg
60 ● 30 x 0.01 kg 60 x 0.02 kg
