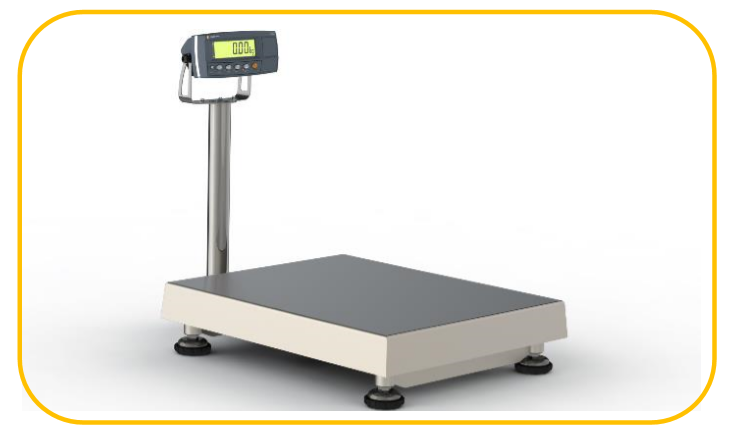

XG Scales
SCXG

XG Scales

Key Highlights & Features

  • 300x300mm (12 in x 12 in) pan XG3030
  • 300x400mm (12 in x 1 6 in) pan XG3040
  • 400x500mm (1 6 in x 2 0 in) pan XG4050
  • 500x600mm (2 0 in x 2 4 in) pan XG5060
  • Aluminium load cell
  • Max Capacity XG3030 : 100kg (220 lb)
  • Max Capacity XG3040 : 100kg (220 lb)
  • Max Capacity XG4050 : 200kg (440 lb)
  • Max Capacity XG5060 : 300kg (660 lb)
  • Stainless steel (304) frame/pan/post

Description


The XG series are sturdy economic scales with an IP65 stainless steel platform and tubular frame and fitted with an aluminium load cell. The base is available with a range of indicators depending on the functionality and environment.

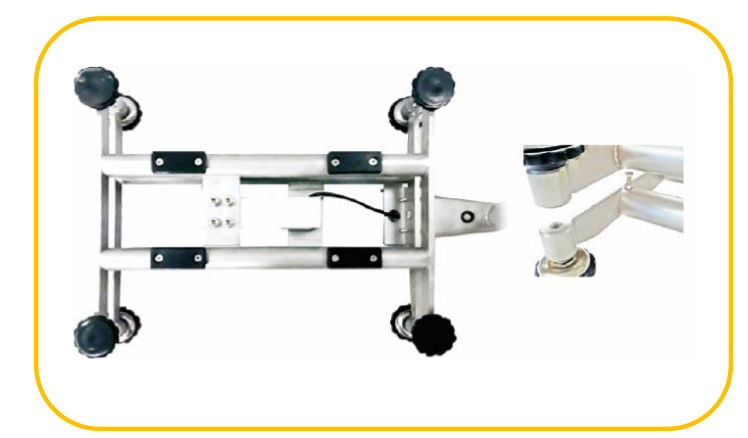

Built to last
  • 2mm circular 304 stainless tubal steel
  • Over load protection stops
  • Rectangular folded pan
  • Overload recording increments every time the scale is overloaded
Easy maintenance & operation
  • Clear open frame- Easy to keep clean.
  • Removable low sided pan - Deflect splatter
  • Sturdy pan construction - No warping
  • 2 Axis rotating head - For best operator viewing angle
Proven Rinstrum indicators
  • Compatible with wide range of Rinstrum indicators
  • Choose one that best suits your application
  • R320, X320 for basic operations and R400 Series for use in more complex operations

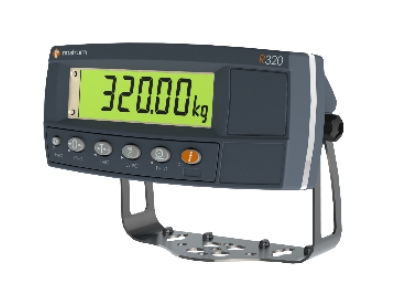

R320 Indicator
  • ABS Housing with silicon keys
  • AC/DC/ 4AA Battery Power Options
  • Super low cost option weight display only
  • Clock calendar, printing available depending on firmware

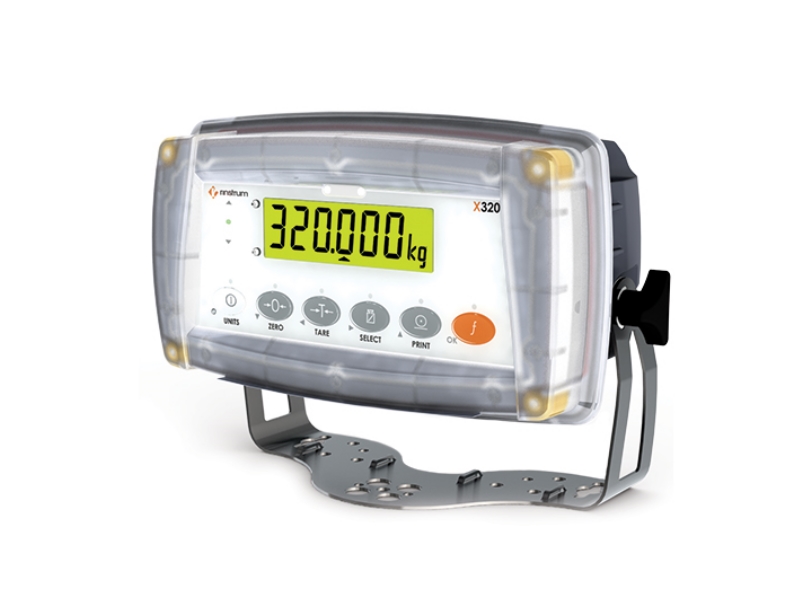

X320 Indicator
  • Tough enclosure – Impact resistant composite alloy housing
  • IP68 and IP69K rated
  • AC/DC/Battery Power Options
  • 3 band check weighing

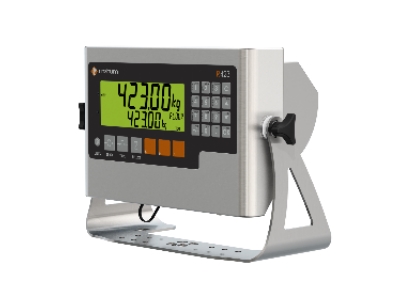

R400 series indicator
  • ABS or Stainless steel housing
  • AC/DC/Battery Power Options
  • Range of firmware options from basic printing to batching.
  • Operator friendly with multiline display and alpha numeric keypad
