Junction boxes and connections to assist in the wiring and connectivity of loadcells to an indicator.

Model	Applications
0075 Orange, Junction Box 5 hole, with PG7 connectors and signal adjustment	Platform Scale Weighbridge Hopper Scale
0077 Stainless steel, Junction Box 7 hole,with PG9 connectors and signal adjustment	Platform Scale Weighbridge Hopper Scale
JB01 Cast Aluminium Junction Box 4 or 8 Load Cell Inputs Plastic Sprayed, Fully Encapsulated	Platform Scale Weighbridge Hopper Scale
0073 2 channel, 4 load cell Board only no adjustment	Platform Scale Hopper Scale
0074 1 channel, 4 load cell Board only no adjustment	Platform Scale Hopper Scale
MC5J2 2 Load Cell Junction IP68 (no adjustment)	Batching Scale
MC5J4 4 Load Cell Junction IP68 (no adjustment)	Platform Scale Hopper Scale

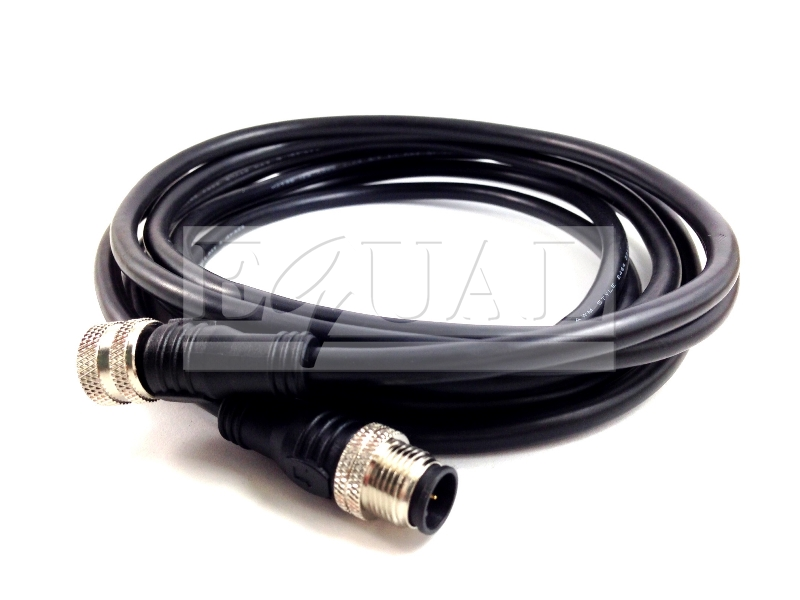

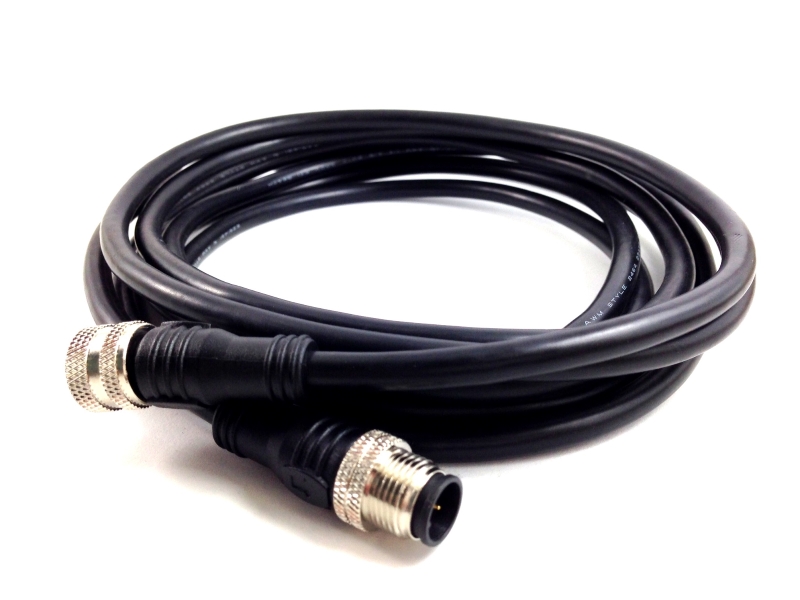

MC5xx M12 5Pin M-F Available in 1 - 30m	M12 Loadcell Extension Cables Between Junction Box and Indicator
MC5E1 M12 Male Field Termination Straight	M12 Loadcell Field Termination Connector
MC5E2 M12 Male Field Termination Right Angle	M12 Loadcell Field Termination Connector
MC5E3 M12 Female Field Termination Straight	M12 Loadcell Field Termination Connector
MC5E4 M12 Female Field Termination Right Angle	M12 Loadcell Field Termination Connector
MC5E6 M12 Female Panel Mount Socket	Suitable for mounting on an indicator for loadcell connection.
MC5E7 M12 Female Bulkhead Mount Socket	Suitable for mounting on an indicator for loadcell connection.
