Single Point Load Cells
SENSPLC

Single Point Load Cells

Key Highlights & Features

  • 2.5kg to 2t Capacity ranges

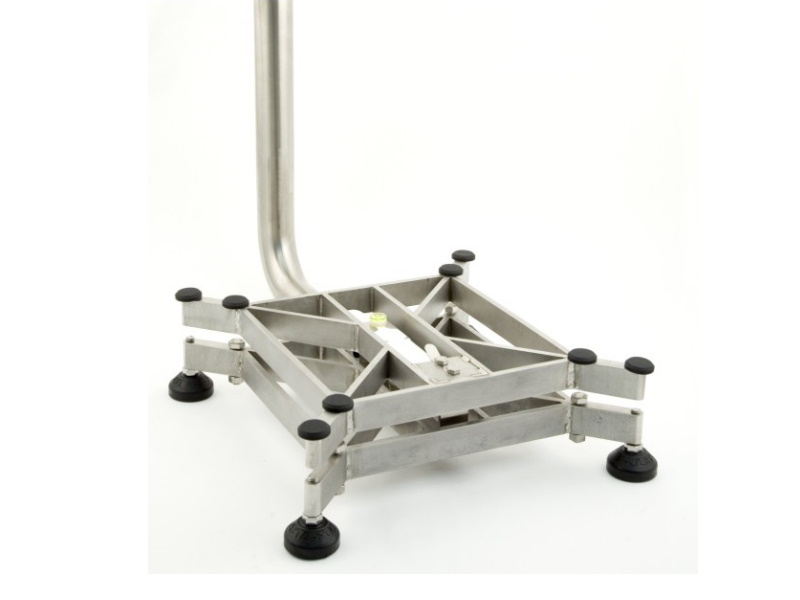

  • Platform scales

Description


Single Point Load Cells (Platform Load Cells) can be used for a variety of weighing functions but their most common application is found in most small to medium sized platform scales. What makes single point loadcells unique is the ability to accept "off-centre" loads. They can support a weighing platform that is bolted directly to them and will accurately measure weight placed at any point on this platform. The maximum platform size is restricted according to the capacity of the loadcell - available from 600g up to 2000kg. This arrangement provides an economical and straight forward system for most small to medium sized platform scales. The table below lists the maximum plaform size for each model and capacity.

Picture Model Application Maximum Platform size
  • B6F Load Cell
  • Stainless Steel
  • 100 - 2000 kg
  • OIML C3
Single or double load cells structured platform scales. 50kg - 200kg: 400mm x 400mm
250kg - 500kg: 600mm x 800mm
750kg - 2t: 1200 x 1200mm
  • B6G Load Cell
  • Stainless Steel
  • 100 - 600 kg
  • C3
Single or double load cells structured platform scales. 600mm x 600mm
  • B6N Load Cell
  • Stainless Steel
  • 8 - 200 kg
  • OIML C3, C4
Platform scales, belt scales, etc. 400mm x 400mm
  • BM6A Load Cell
  • Stainless Steel
  • 6 - 60kg
  • OIML C3
Platform scales, belt scales, etc. 350mm x 350mm
  • BM6E Load Cell
  • Stainless Steel
  • 50 - 300kg
Platform scales, belt scales, etc. 600mm x 600mm
  • BM6G Load Cell
  • Stainless Steel
  • 10 - 500kg
  • OIML R60 C3, C4, C5, NTEP
Platform scales, belt scales, etc. 100 - 500kg: 800mm x 800mm
10 - 50kg: 400mm x 400mm
  • H6F Load Cell
  • Alloy steel
  • 100 - 2000 kg
  • C3
Single or double load cells structured platform scales. 100kg - 200kg: 400mm x 400mm
250 - 500kg: 600mm x 600mm
750 - 2000kg: 1200 x1200mm
  • H6G Load Cell
  • Alloy steel
  • 100 - 600 kg
  • C3
Single or double load cells structured platform scales. 600mm x 600mm
  • L6B Load Cell
  • Aluminium alloy
  • 0.3 - 3 kg
  • C3D
Suitable for balances. 200mm x 200mm
  • L6C Load Cell
  • Aluminium alloy
  • 3 - 50 kg
  • C3D
single or double load cell structured platform scales 250mm x 350mm
  • L6D Load Cell
  • Aluminium alloy
  • 2.5 - 50 kg
  • OIML C3, C4, C5, NTEP
Small platform scales like pricing scales, weighing only scales 250mm x 350mm
  • L6D15 Load Cell
  • Aluminium alloy
  • 6 - 30 kg
  • OIML C3, C5
Small platform scales like pricing scales, weighing only scales 350mm x 350mm
  • L6D8 Load Cell
  • Aluminium alloy
  • 50 - 200 kg
  • OIML C3, C4
Small platform scales like pricing scales, weighing only scales. 350mm x 350mm
  • L6E Load Cell
  • Aluminium alloy
  • 50 - 300 kg
  • OIML C3, C5, NTEP
Pricing scales, bench scales, etc 400mm x 400mm

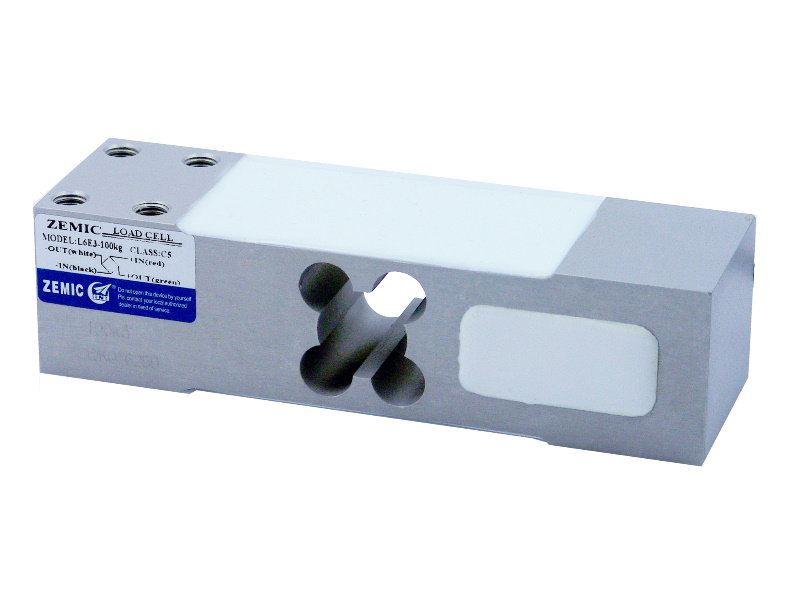

  • L6E3 Load Cell
  • Aluminium alloy
  • 50 - 500 kg
  • OIML C3, C5, NTEP
Pricing scales, bench scales, etc 450mm x 450mm
  • L6F Load Cell
  • Aluminium alloy
  • 50 - 2000 kg
  • OIML C3
Single & double load cells structured platform scales. 50kg - 200kg: 600mm x 600mm
250kg - 500kg: 600mm x 800mm
750kg - 2t: 1200 x 1200mm
  • L6G Load Cell
  • Aluminium alloy
  • 50 - 600 kg
  • OIML C3, C4
Single & double load cells structured platform scales. 600mm x 600mm
  • L6H5 Load Cell
  • Aluminium alloy
  • 4 - 20 kg
  • OIML C3
Single load cell structured electronic scales. 200mm x 200mm
  • L6J Load Cell
  • Aluminium alloy
  • 1 - 20 kg
  • C3D
Counting scales, balances, etc. 200mm x 200mm
  • L6J1 Load Cell
  • Aluminium alloy
  • 0.3 - 3 kg
  • C3D
Counting scales, balances, etc. 200mm x 200mm
  • L6N Load Cell
  • Aluminium
  • 3 - 100 kg
  • OIML C3, C4
Pricing scales, bench scales, etc 350mm x 400mm
  • L6Q Load Cell
  • Aluminium
  • 50 - 250 kg
  • OIML C3, C4, C5 NTEP Class III
Pricing scales 400mm x 400mm
  • L6W Load Cell
  • Aluminium
  • 50 - 635 kg
  • C3
Pricing scales, bench scales, etc. 50 -  200kg: 600 x 600mm
250 - 635 kg: 600 x 800mm
