D320 and D323 Remote Displays
RDD320

D320 and D323 Remote Displays

Key Highlights & Features

  • 20mm (0.8in) LCD display
  • 3 Annunicators
  • Auto-detecting setup
  • Bright LED Backlighting
  • C-Tick, CE and FCC approved
  • Cross manufacturer compatibility
  • Stainless steel or ABS IP65 housing

Description


The D320 and D323 are compact six digit remote displays based on the R300 series indicators. They make a cost effective display solution for a variety of applications; including freight / airport scales, and mobile feedlot mixers.

The setup is auto-detecting to selected indicators and the unit has an RS232 serial input. Available in ABS and stainless steel housings:

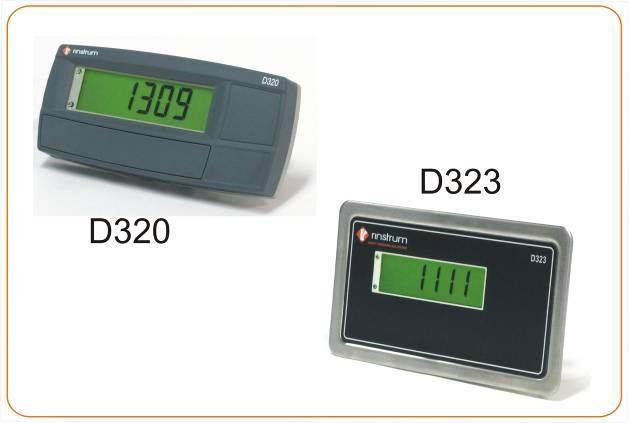

  • D320 IP65 ABS housing
  • D323 IP65 stainless steel housing.

The flexible mounting options (panel, desk, and wall) allow for fitting into these installations and the LCD display is LED backlit catering for a range of lighting conditions.
Compact housings - Allows for the unit to be readily mounted on small control panels or equipment, reducing costly modifications to the units they are being installed into.
Magnetically coupled link on front fascia - Easy access in situ for updates/setup of the unit, saving the installer time and effort.
IP65 rated housings - Dust and water tight, increasing reliability and unit life time.
Wide DC operation (7 -24V) to suit a variety of onboard OEM applications -Eliminates the need for third party power supplies saving on system complexity and cost.
