1203 Weight Transmitter

    1203 Weight Transmitter


    Key Highlights & Features

    • 1 Isolated Input
    • 100,000d @ 0.25/V/d
    • 12-24 VDC
    • 2 Isolated Outputs
    • Configurable Analogue Output
    • PC Viewer software for full setup by serial port
    • RS232 and RS485 serial outputs


    The 1203 weight transmitter is an economical, robust instrument that provides fast and accurate weight readings.

    2 Isolated Outputs: Built-in outputs can drive alarms or can be used for simple level control applications.

    Drive capability 300mA at up to 30VDC which allows for direct control of most DC powered actuators and relays

    1 Isolated Input: Built-in input for remote zero, clear of peak value, or to enable PLCs to control serial transmission frequency

    Configurable Analogue Output: Built-in 16-bit isolated analogue output for connection into PLCs
    • 4-20mA, 0-24mA, 0-20mA
    • -10-10V, 0-10V, 2-10V, 0-5V,1-5V
    Built-in RS232 DB9 serial connection allows easy setup using the free Viewer software on a PC allows for configuration to be saved and loaded onto other units.

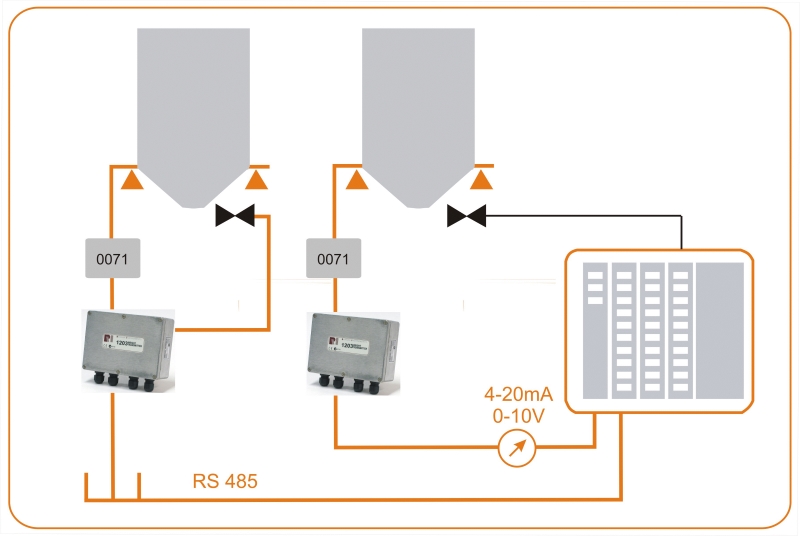

    RS232 and RS485 Serial Outputs: Built-in serial communications for connection to PLC controllers, PCs or score boards. Both are full duplex with RS485 supporting multi-drop networks of up to 30 units

    100Hz updates for smooth analogue performance

    Peak hold capability can be linked to a set point output, serial communications, display or analogue output
