    T Series T610, T620 and T105

    T Series T610, T620 and T105

    INT610

    Key Highlights & Features

    • 8-way cat5 cables of POE Standard connections.
    • Digital weigh transmission using standard RS485 serial communication.
    • M12 waterproof connectors for outdoor.
    • RJ45 connectors for Indoor.
    • Supports ring, tree, star and custom network topologies.
    • Up to 31 Devices can be connected.

    Description


    The T6xx modules are Digital weight transmitters that use the rinWIRE interface which implements RS485 serial communication protocol to connect devices in a ring network.

    Protocol uses ASCII characters with a single master POLL / RESPONSE message structure.

    Each sensor regenerates the communication signals so there is no need for network termination devices to balance the network as with standard RS485.
    Digital weight transmitter
    Indoor:
    • T610 modules are designed for indoor use.
    • RJ45 connectors are used for connections.

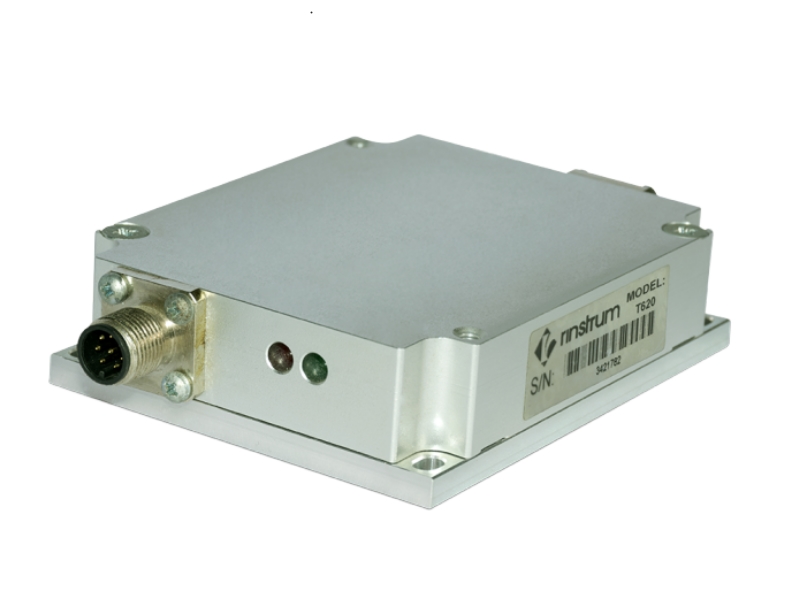

    Outdoor:
    • T620 modules are designed for outdoor use.
    • M12 connectors are used for connections.
    • Rugged potted metal housing.
    • IP68 rated.

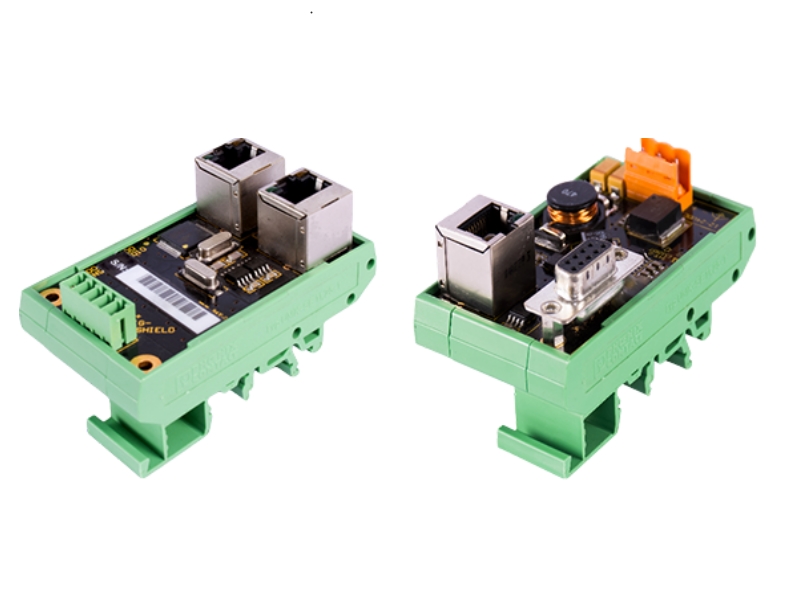

    RinWire interface converter
    • T105 Protocol Board to convert Standard RS232 to RS485.
    • With external power supply.
    • Reverse Polarity and short circuit protected.
