R400 Series MAX Application Solutions

    R400 Series MAX Application Solutions


    Key Highlights & Features

    • ABS - Full Housing or Panel Mount
    • AC or DC power option
    • Lua Scripting Included in pricing and provided by Rinstrum
    • R400 Series Functionality
    • RS232/RS485/Ethernet Comms options
    • Stainless Steel - Full Housing or Panel Mount
    • Standard I/O, Analog

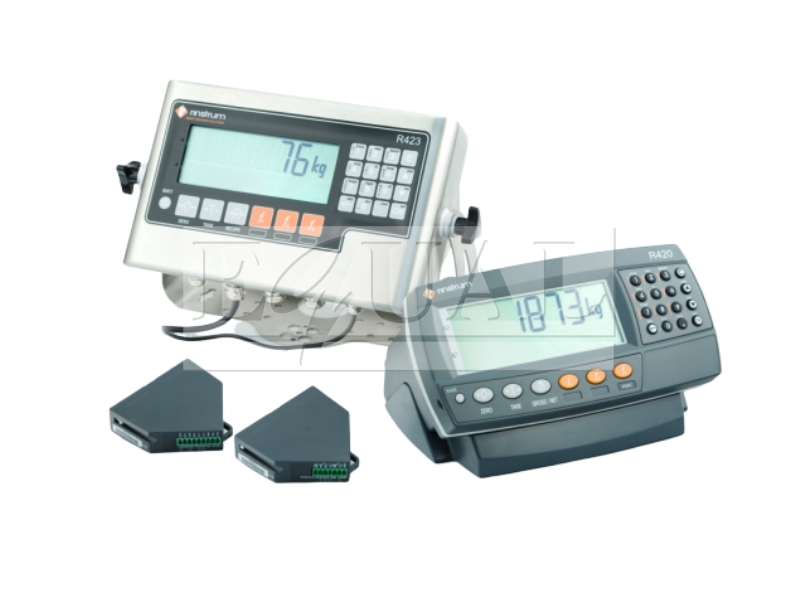

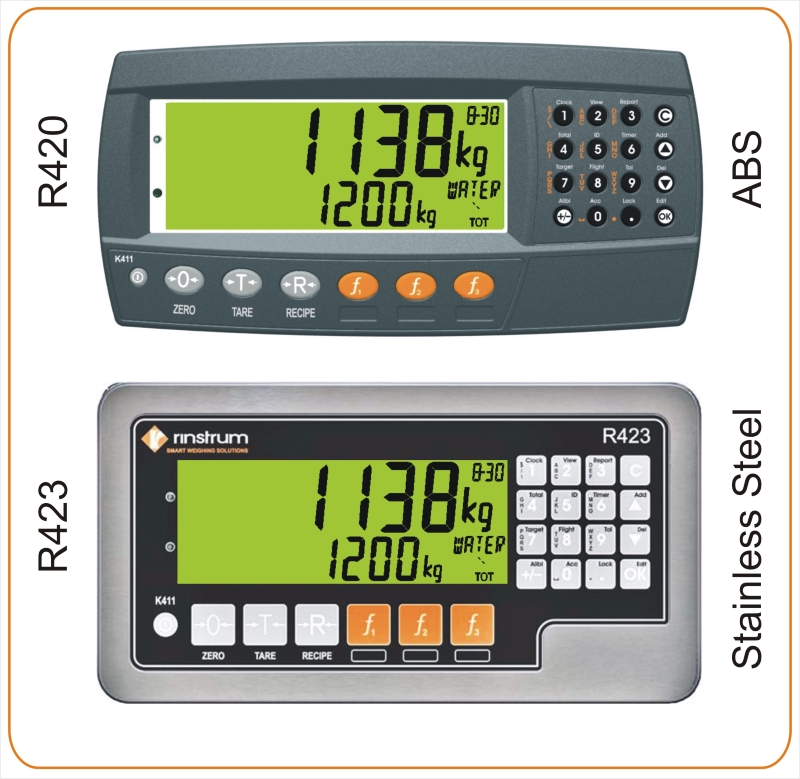

    The R400 Series indicators now offer programmability through our Lua module in addition to the 8 standard application firmware that is also available. This combination of programmability and standard application firmware means an R420 or R423 can be configured to suit a large number of single scale, static weighing applications. As an introductory offer, R400 Series MAX is available where a dealer defines the customer application and for a fixed price Rinstrum will provide an R400 series indicator configured according to the application.

    "If the hardware can do it then we will take care of firmware"

    Rinstrum indicators are built on foundation firmware with 1000's of hours R&D investment. The Lua module's custom scripts leverage this solid baseline firmware as a starting point. For example, the technician doesn't need to implement set-points with hysteresis; those features are already there. How set-points are used can be tailored to the application. Less time scripting using time-proven functionality, reduces risk while ensuring greater confidence in the delivered system.
