    Stainless Steel Wash Down Scale

    Stainless Steel Wash Down Scale

    SCWDS

    Key Highlights & Features

    • Check weighing
    • Stainless steel (304) frame and pan
    • Trade approved NMI 6/4C/256
    • X320 Indicator
    • XS - IP67 S/S load cell
    • XT - IP68 and IP69K S/S load cell

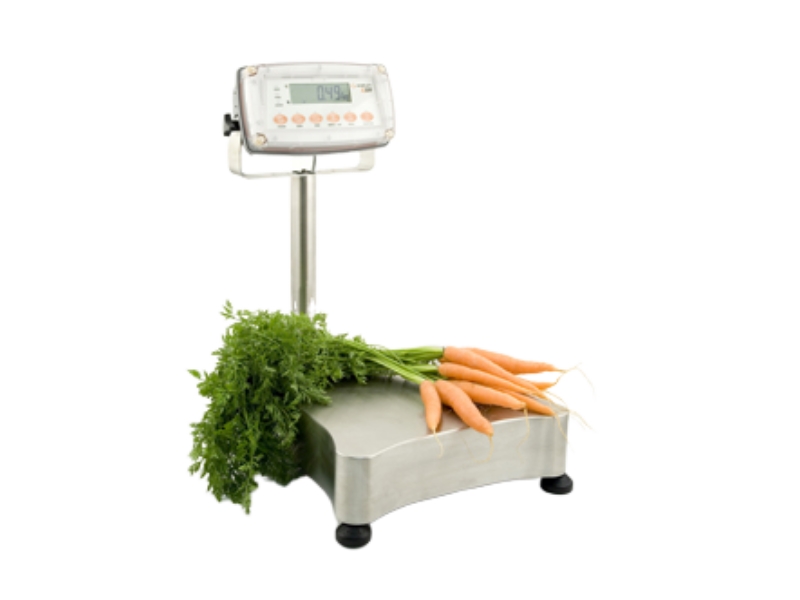

    Description

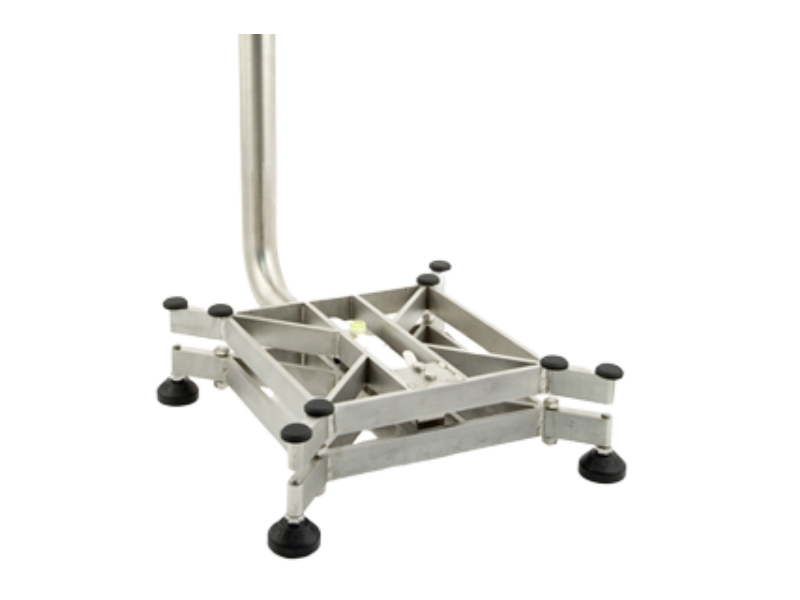

    The XT and XS bases both use 304 stainless steel throughout, making them suited to food areas. The XT uses an IP69K/IP68 load cell so it is used where high pressure, high temperature wash down or submersion is required. The XS uses and IP67 rated stainless steel load cell suitable for wash down.

    Both of these bases can be combined with an X320 indicator creating a general purpose or check weighing scale for food processing applications or similar depending on the environmental rating of the area. It is ideal for:
    • Tough environments where there is possibility of knocks
    • Where heavy wash down of the indicator and base is needed (IP69K).
    • Check weighing and general purpose weighing

    Tough enclosure Impact resistant composite alloy indicator housing designed to withstand knocks
    Capacitive keys No moving parts, no membrane to leak or damage
    Clear highly visible display 20mm LCD display with LED backlight
    Built-in check weigh function 3 coloured high intensity status LEDs
    Three outputs - Over, Under, Pass High side drivers up to 400mA, to drive a traffic light pole for example

    Standard X Scale Series features:
    Built-in RS232 Connection to printer, PC or display
    Configurable printing Link to a printer for customised reports, printouts and dockets.
    Built in clock calendar For date and time stamping
    Three power options AC, DC and rechargeable NiMH battery options
    Dedicated function keys Zero, Tare, Gross/Net

      Pan Size -A Dual Range Capacity
    Capacity (kg) 310 x 310mm Range 1 Range 2
    15 ● 6 x 0.002 kg 15 x 0.005 kg
    30 ● 15 x 0.005 kg 30 x 0.01 kg
    60 ● 30 x 0.01 kg 60 x 0.02 kg
