    LeverMount Patented Assembly for Process Weighing

    LeverMount Patented Assembly for Process Weighing

    SENLM

    Key Highlights & Features

    • Capacities 10kg to 5000kg
    • Easily configurable for radial or tangential mounting
    • Fully welded and sealed to IP68 / IP69K
    • High stability three point mounting
    • Load cell removal without jacking or dummies
    • Stainless steel OIML C3 approved load cell
    • Substantial lift off prevention

    Description

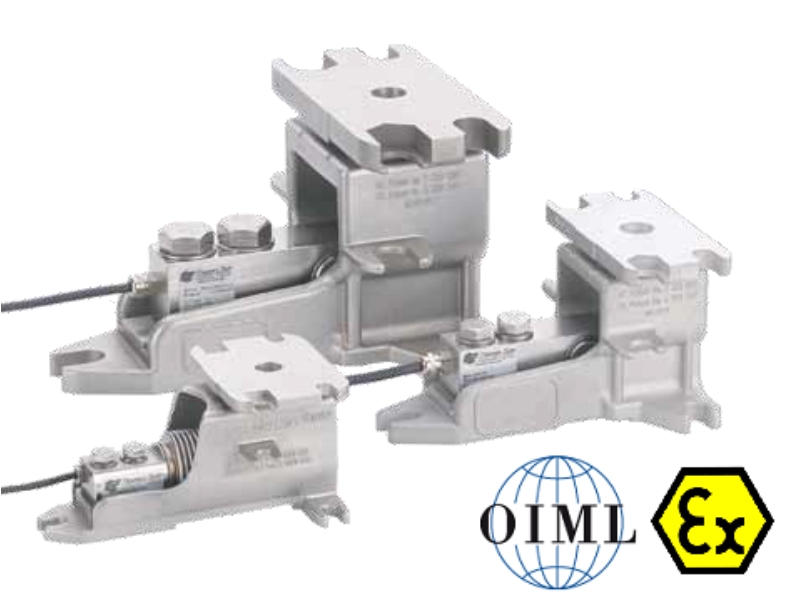

    Assembly - LeverMount
    Capacities: 300 - 5000 kg

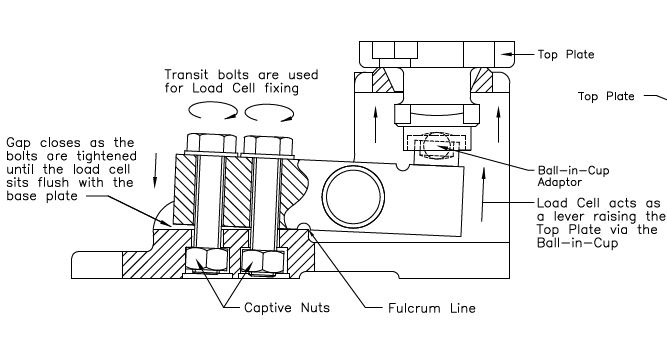

    LeverMount's unique patented design is such that no separate support arrangements are necessary to raise and lower the vessel. The base casting itself provides a stable load-bearing platform prior to installation of the load cell. Once the vessel is in position and the two transit bolts are removed, the load cell is used as a lever to raise the top plate of the mount into the working position, regardless of whether the vessel is empty or full. Designed for process weighing applications particularly food and pharmaceutical.
    • Top plate movement in the lateral and rotational axis making it tolerant of steel work misalignment avoiding any mechanically induced errors.
    • Stainless steel, IP68/IP69K, fully welded, single ended shear beam load cell making it suitable for use in the harshest of industrial environments.
    The LeverMount allows for substantial labour saving to be made and improved safety due to simple installation and removal of load cells.

    Load Cell - 350i Shear Beam
    Capacities: 300 - 5,000kg
    This load cell is used in the LeverMount assembly that is typically used in weigh platforms, tank and vessel weighing, bag filling machines and conveyors, and is approved to OIML R60 3000 divisions. Fully welded construction ensures total environmental sealing coupled with excellent long term stability.

    Note: for capacities below 300kg, the LeverMount Lite Assembly can be combined with the T66 load cell, please enquire with the sales team.
