    Miniature Double Ended Beam

    Miniature Double Ended Beam

    SENMDEB

    Key Highlights & Features

    • Capacities: 10 - 50t
    • FM approval available
    • High side load tolerance
    • Hermetically sealed available
    • Surge protection optional for 10t to 50t
    • Electroless nickel plated alloy tool steel

    Description


    Description

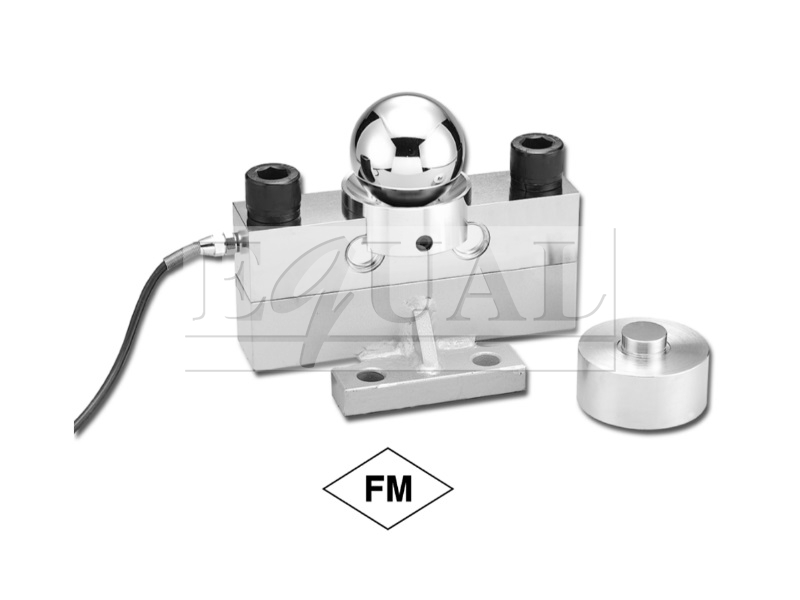

    MDB is designed for truck and rail scales in high capacities with a low profile. The design of loading through a ball is insensitive to sideload. MDB is constructed of alloy steel and is fully potted and sealed with special chemical compounds to IP67 providing excellent protection against water and moisture attack. MDB Hermetically-Sealed is constructed to IP68 providing excellent protection against corrosive and washdown environments.

    Application
    • Truck/rail scales
    • Silo/hopper/tank weighing

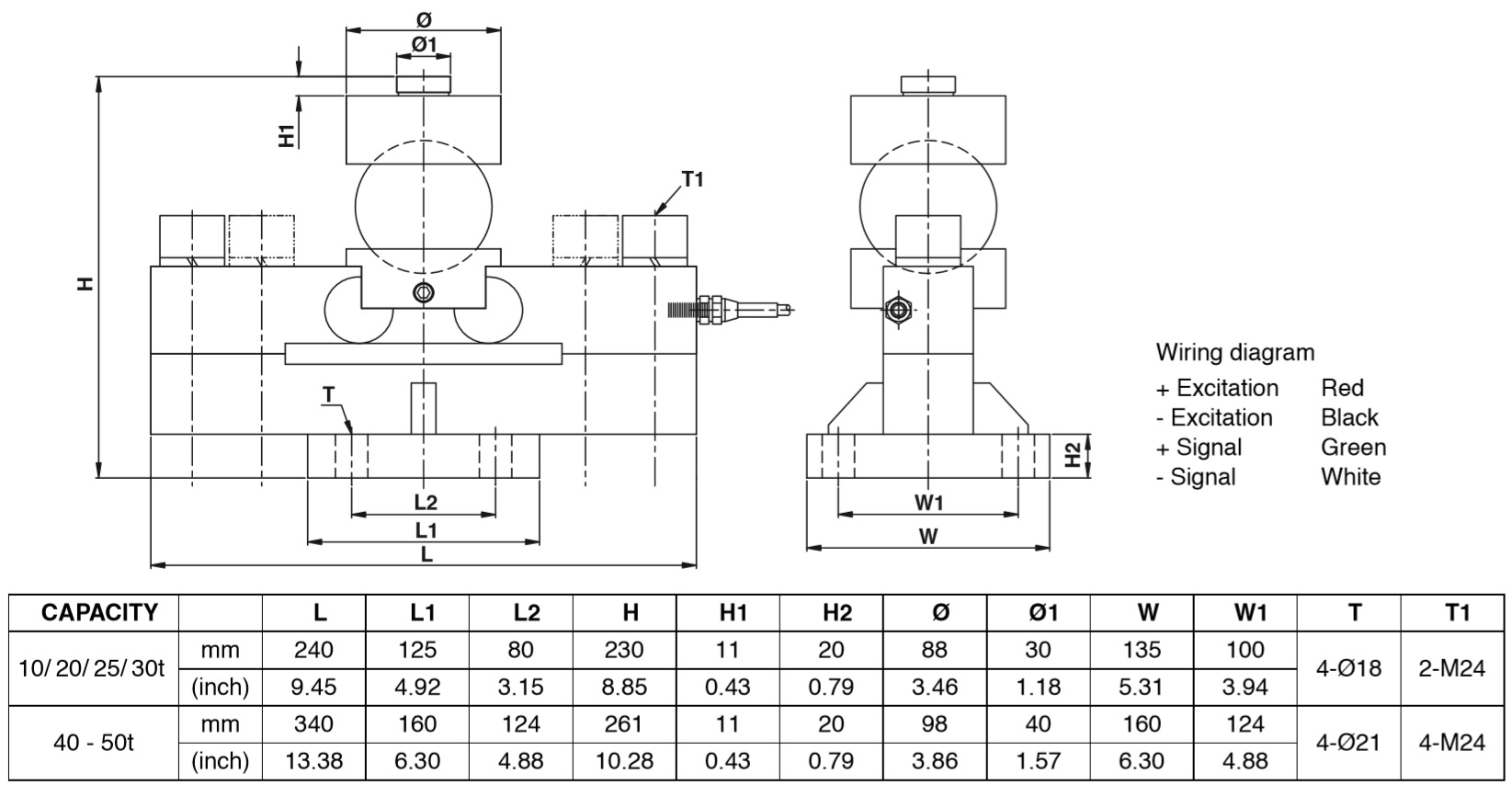

    Outline Dimensions
    Outline Dimensions

    Specifications
    PARAMETER VALUE UNIT
    NTEP/OIML Accuracy class  Non-Approved
    Maximum no. of intervals (n) 3000
    Y = Emax/Vmin 5000 Maximum available
    Standard capacities (Emax) 10000, 20000, 25000, 30000, 40000, 50000 kg
    Rated output-R.O. 2.0 mV/V
    Rated output tolerance 0.2 ±% of rated output
    Zero balance 1 ±% of rated output
    Non-linearity 0.030 ±% of rated output
    Hysteresis 0.030 ±% of rated output
    Non-repeatability 0.020 ±% of rated output
    Creep error (20 minutes) 0.030 ±% of rated output
    Zero return (20 minutes) 0.030 ±% of rated output
    Temperature effect on min. dead load output 0.0026 ±% of rated output/°C
    Temperature effect on sensitivity 0.0015 ±% of applied load/°C
    Compensated temperature range -10 to +40 °C
    Operating temperature range -20 to +60 °C
    Safe overload 150 % of R.C.
    Ultimate overload 300 % of R.C.
    Excitation, recommended 10 Vdc or Vac rms
    Excitation, maximum 15 Vdc or Vac rms
    Input impedance 770±10 Ohms
    Output impedance 700±5 Ohms
    Insulation resistance >5000 Mega-Ohms
    Cable length 13.5 m
    Construction Nickel-plated alloy steel
    Environmental protection IP67
    All specifications listed subject to change without notice.

    FM Approval
    Intrinsically Safe: Class I, II, III; Div. 1 Groups A-G
    Non-Incendive: Class I; Div. 2 Groups A-D
