6700 Summing Remote Display
RD6700
Key Highlights & Features
4 set points (option)
Analogue module with isolated outputs (option)
Built in AC and DC versions
Built in RS232 and RS485
High contrast LED display/li>
Master/slave mode to 5000 indicators
Programmable input string
Serial summing with 5000 indicators
Technical schedule S1/0/A
Unit addressing up to 31 addresses
Share to Friends
Ask Equal Weighing
Whatsapp Equal Weighing
Description

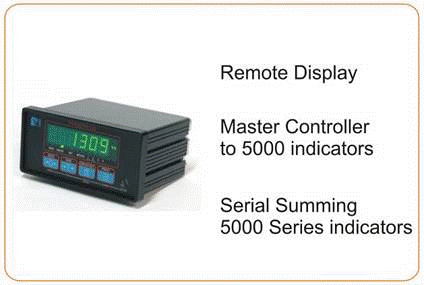

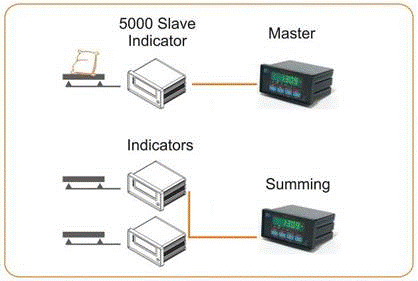

The 6700 may be configured to operate as a:
remote display
Master of a 5000 or
Summer of several 5000s.
The 6700 operates like a 5000 indicator except that the weight information does not come from the load cell interface but from serially transmitted readings.
DIN standard housing
- Allows for the unit to be readily mounted into standard DIN cutouts, reducing modifications to the units they are being installed into.
Analogue Output
- 4-20mA or 0-10V with 1/65,000 resolution
High current outputs
- Reduces wiring and the need for external relays, saving installation cost and reducing overall system size.
Isolated outputs
- Eliminates the possibility of the external control systems influencing the weighing process, therefore simplifying system design and installation.
Robust I/O
- Reduces unplanned outages due to component failure and reduced life time costs for the installation.
Wide DC operating range
- Eliminates the need for third party power supplies saving on system complexity and cost.
